CNC Machining for AI Hardware: Precision Manufacturing for the Next Generation of Computing

/in , /by

Artificial intelligence is advancing at an unprecedented pace, driven by breakthroughs in neural networks and massive datasets. However, behind every software innovation lies a critical and often overlooked layer of physical infrastructure. AI hardware—from high-density server racks to edge computing devices—requires mechanical components that can withstand extreme thermal loads and meet strict dimensional tolerances.



For engineers and hardware developers, CNC machining has become the foundational manufacturing process for AI infrastructure. Whether you are developing liquid cooling manifolds for data centers or compact enclosures for AI-driven robotics, precision CNC machining provides the accuracy, scalability, and material versatility required to bring these advanced systems to life.



Why AI Hardware Demands Precision CNC Machining

Unlike standard consumer electronics, AI hardware operates under extreme conditions. Training large language models (LLMs) or processing real-time computer vision data requires massive computational power, which in turn generates significant heat and mechanical stress.

CNC machining is essential for AI hardware manufacturing for three primary reasons:



  1. Extreme Thermal Management

AI workloads push GPUs and custom ASICs to their thermal limits. Effective heat dissipation is non-negotiable to prevent throttling and hardware failure. CNC machining is the preferred method for manufacturing complex heat sinks, cold plates, and liquid cooling distribution manifolds. Multi-axis CNC mills can cut intricate fin geometries and internal fluid channels into high-thermal-conductivity materials like copper and aluminum, maximizing the surface area for heat transfer.



  1. Micron-Level Tolerances

In high-density AI server racks, spatial efficiency is critical. Components such as processor housings, mounting brackets, and EMI (Electromagnetic Interference) shields must fit together perfectly. CNC machining routinely achieves tolerances as tight as ±0.01 mm, ensuring that delicate electronic components are securely aligned and protected from vibration and environmental factors.



  1. Rapid Prototyping to Low-Volume Production

The AI hardware sector is evolving rapidly. Hardware startups and enterprise data centers frequently iterate on designs to accommodate new chip architectures. CNC machining allows for rapid transition from an initial AI hardware prototype to low-volume manufacturing (1,000 to 10,000 units) without the long lead times and high upfront costs associated with injection molding or die casting.



Key CNC Machined Components in AI Infrastructure

The physical backbone of artificial intelligence relies on a variety of precision-machined parts.

AI Server and Data Center Hardware

Data centers optimized for AI require robust structural and thermal components:

  • Liquid Cooling Cold Plates:Direct-to-chip cooling plates machined from copper or aluminum to extract heat directly from high-performance GPUs.
  • Server Chassis and Racks:High-strength aluminum and stainless steel frames that provide structural integrity for heavy, densely packed server units.
  • Fluid Distribution Manifolds:Precision-machined manifolds that route coolant safely through the server rack without risk of leakage.



Edge AI and Smart Devices

For AI applications deployed outside the data center—such as autonomous vehicles, industrial robotics, and smart cameras—the requirements shift toward durability and weight reduction:

  • AI Device Enclosures:Ruggedized, weather-resistant aluminum housings that protect sensitive edge computing boards from harsh environments.
  • Sensor and Lidar Brackets:Lightweight, dimensionally stable mounts that ensure optical and spatial sensors remain perfectly calibrated.



Material Selection for AI Hardware Machining

Choosing the right material is critical for balancing thermal performance, weight, and structural integrity in AI devices.



Material Key Properties Common AI Hardware Applications
Aluminum (6061, 7075) Lightweight, excellent machinability, good thermal conductivity, highly corrosion-resistant when anodized. Server chassis, AI device enclosures, standard heat sinks, sensor brackets.
Copper (C101, C110) Superior thermal and electrical conductivity, higher density and cost than aluminum. High-performance GPU cold plates, advanced liquid cooling modules, electrical contacts.
Stainless Steel (304, 316) High tensile strength, excellent corrosion resistance, durable under mechanical stress. Structural rack components, heavy-duty mounting fixtures, EMI shielding.
Engineering Plastics (PEEK, POM) Electrical insulation, low weight, chemical resistance. Internal insulating brackets, non-conductive spacers, lightweight drone components.



Why E-make Precision is Your Partner for AI Hardware Manufacturing

When developing infrastructure for artificial intelligence, you need a manufacturing partner who understands the demands of high-performance computing. E-make Precision is uniquely equipped to support the rapid development and production of AI hardware.



With over 30 years of combined experience in prototype and low-volume manufacturing, we offer the capabilities necessary to bring your AI hardware to market faster:



  • Uncompromising Precision:Our state-of-the-art 3-axis and 5-axis CNC machining centers hold tolerances down to ±0.01 mm, ensuring your heat sinks and enclosures meet strict ISO 2768-m/-f standards.
  • Advanced Thermal Solutions:We specialize in machining complex copper and aluminum cooling components, from prototype cold plates to low-volume production runs of server manifolds.
  • Rapid Turnaround:In the fast-paced AI industry, speed is critical. We provide detailed quotes in under 8 hours and deliver CNC machined parts in just 1 to 3 days.
  • Scalable Manufacturing:Whether you need 5 prototypes for thermal testing or 5,000 enclosures for a product rollout, our flexible production lines scale to meet your exact volume requirements.
  • Comprehensive Finishing:We offer complete surface finishing services, including anodizing, powder coating, and electroless plating, ensuring your parts are protected and aesthetically refined.



Accelerate Your AI Hardware Development

The hardware that powers artificial intelligence cannot be compromised by subpar manufacturing. From intricate thermal management systems to rugged edge computing enclosures, precision CNC machining is the clear choice for quality and performance.



Ready to build the future of computing?



Contact E-make Precision today to discuss your AI hardware project. Submit your STEP or IGES files to bennett@e-make.co and receive a comprehensive quote within 8 hours.



Visit https://e-make.co to learn more about our advanced CNC machining and rapid prototyping capabilities.





E-make Precision | Shenzhen, China | bennett@e-make.co | https://e-make.co

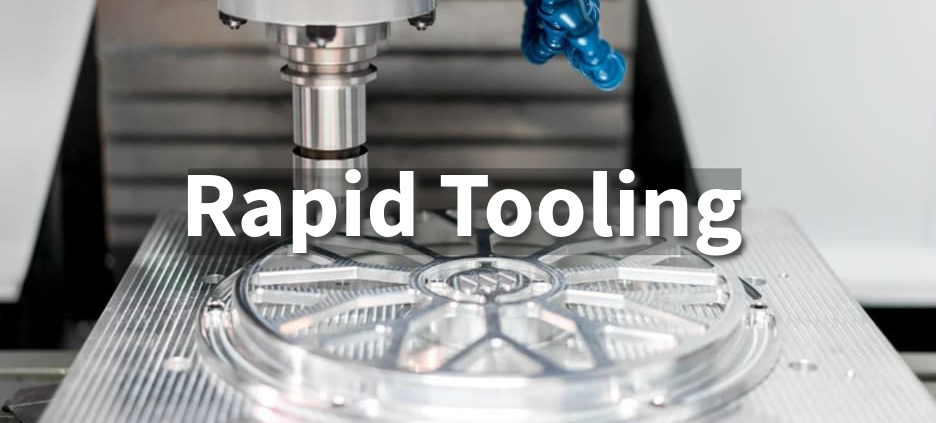

Rapid Tooling: The Fastest Path from Design to Production-Ready Parts

/in , /by

Getting a product to market faster than your competition is no longer just an advantage — it is a necessity. For engineers and product developers who need functional plastic or metal parts quickly, rapid tooling has become the go-to solution. It bridges the gap between a finalized 3D design and a production-ready mold, cutting weeks of lead time down to days.



In this guide, we cover what rapid tooling is, the different types available, when to use it, and how to choose the right manufacturing partner.



What Is Rapid Tooling?

Rapid tooling refers to the process of quickly producing molds, dies, and other production tooling using advanced manufacturing techniques — primarily CNC machining, 3D printing, and EDM (Electrical Discharge Machining). Unlike conventional tooling, which can take 8 to 16 weeks and significant capital investment, rapid tooling can deliver a functional mold in as little as 5 to 15 business days.



The term covers two broad categories:



Type Description Best For
Direct Rapid Tooling The mold is produced directly from CAD data using CNC or additive processes Short-run production, functional testing
Indirect Rapid Tooling A master pattern is created first, then used to produce the final mold Complex geometries, silicone or epoxy molds



Types of Rapid Tooling Explained

Prototype Mold (Soft Tooling)

A prototype mold — sometimes called a soft tool — is typically made from aluminum or a lower-grade steel. It is designed for low-volume runs, usually between 1,000 and 10,000 parts. Because the mold does not need to last for millions of cycles, the machining process is faster and the material cost is lower.



This is the most common entry point for companies moving from prototype to pre-production. The mold can share a universal mold base with other cavities, further reducing cost and lead time.



Reaction Injection Molding (RIM)

RIM is a specialized process that uses low-viscosity liquid polymers — typically polyurethane — rather than the thermoplastics used in standard injection molding. The polymers are mixed and injected into a heated mold, where a chemical reaction causes them to expand and harden.



The result is large, lightweight structural parts with excellent design flexibility. RIM is widely used in automotive bumpers, medical equipment housings, and industrial enclosures.



ABS Mold

An ABS mold is produced by CNC machining or 3D printing an ABS plastic mold cavity. It is primarily used for low-volume silicone rubber parts and overmolding applications. The tooling cost is minimal, making it ideal for early-stage product validation.



Aluminum Mold

Aluminum molds offer a step up in durability compared to ABS or epoxy tooling, while still being significantly cheaper and faster to produce than hardened steel molds. They are well-suited for interior structural plastic components in runs of 1,000 to 2,000 parts where surface finish requirements are moderate.



When Should You Use Rapid Tooling?

Rapid tooling is the right choice when:



  • You need production-grade parts for testing.CNC-machined prototype molds produce parts with the same material properties as final production runs — something 3D printing cannot always replicate.
  • Your volumes are low.For runs between 500 and 10,000 units, investing in a full production steel mold is often not economically justified.
  • Your design is still evolving.Aluminum molds are easier and cheaper to modify than hardened steel tools, making them ideal for products that may require design iterations.
  • Speed is critical.If you are working toward a trade show deadline, investor demo, or product launch, rapid tooling can compress your timeline significantly.



Rapid Tooling vs. Conventional Tooling: A Direct Comparison

Factor Rapid Tooling Conventional Tooling
Lead Time 5–15 business days 8–16 weeks
Tooling Cost $1,500–$15,000 $20,000–$100,000+
Mold Material Aluminum, ABS, soft steel Hardened P20, H13 steel
Part Volume 1,000–10,000 units 100,000–1,000,000+ units
Design Changes Easy and affordable Expensive and time-consuming
Surface Finish Good (SPI B2–A2) Excellent (SPI A1)

The trade-off is clear: rapid tooling sacrifices long-term durability for speed and cost-efficiency. For most product development cycles, that is exactly the right trade-off to make.



Why E-make Precision Is Your Trusted Partner for Rapid Tooling

Choosing the right rapid tooling partner matters as much as choosing the right process. At E-make Precision, our team brings over 30 years of combined experience in prototype and low-volume manufacturing, working with product engineers, industrial designers, and OEM procurement teams across North America, Europe, and Asia.



Here is what sets our rapid tooling service apart:



  • Comprehensive Tooling Options:We offer prototype molds, RIM tooling, ABS molds, and aluminum molds — all under one roof. You get a single point of contact from DFM review to final shipment.
  • Tight Tolerances:Our CNC machining centers hold tolerances as tight as ±0.01 mm, ensuring your mold cavities meet dimensional requirements on the first shot.
  • Fast Quoting:Submit your STEP or IGES file and receive a detailed quote in under 8 hours. No waiting days for a callback.
  • End-to-End Surface Finishing:From polishing and anodizing to painting and silk-screening, we handle post-processing so your parts arrive ready to use.
  • Transparent Communication:Our team responds in English within hours, with 24-hour communication coverage to keep your project moving.



Whether you need 500 polyurethane enclosures for a medical device trial or 5,000 aluminum-mold plastic brackets for an automotive interior, E-make Precision has the tooling capability and manufacturing flexibility to deliver.



How to Get Started

Getting a rapid tooling quote from E-make Precision is straightforward:



  • Prepare your CAD filein STEP, IGES, STP, or X_T format.
  • Email your files to bennett@e-make.co with your quantity, material, and surface finish requirements.
  • Receive your quotewithin 8 hours, including DFM feedback if any issues are identified.
  • Approve and produce.Once you confirm the order, tooling fabrication begins immediately.



Conclusion

Rapid tooling is one of the most effective ways to accelerate product development without compromising part quality. Whether you are validating a new design, running a market pilot, or bridging the gap before full production tooling is ready, the right rapid tooling process — and the right partner — can make the difference between hitting your launch date and missing it.



Ready to move your project forward? Contact E-make Precision today. Upload your CAD file and get a free quote in under 8 hours.





E-make Precision | Shenzhen, China | bennett@e-make.co | https://e-make.co

What You Should Know Before CNC Production Machining?

/in , /by

What You Should Know Before CNC Production Machining?

Everything before this subject is prep work. CNC Machining is where the rubber meets the road. All the steps of CNC before machining are just planning for the machining stage of the job. An easy interpretation of machining is eliminating material. You eliminate material in various means to come up with the component or piece.



CNC Machining can be carried out on countless types of product. As an example, wood, steel, light weight aluminum, and also rock. Machining normally has greater tolerances connected with it. When machining, you are attempting to do something much more accurate.



In machining, we use some sort of tool. This device could be a grinder, drill bit, end mill, router little bit or various other device. There are unlimited variations of tools. CNC Tooling usually costs a reasonable amount of cash. When you purchase your tooling though, you can use it over and over up until it wears. If you have a big range of various tools, you will be able to do a big selection of machining kinds.



Right here is a listing of typical tooling utilized in CNC Machines:

Drill little bits

End mills

Plasma cutter

Dovetail cutter

Fly cutter



If you wish to take a look at different sorts of CNC tooling, go to one of these resources on the Internet:

Enco

Travers

McMasters-Carr

Grainger



Browse a few of these suppliers’ catalogs and you will certainly get a suggestion concerning the boundless designs of tooling.



CNC is used in the machining procedure. Normally, you can get better accuracy, quicker production, as well as general effectiveness when making use of CNC machining. This is why it has ended up being so popular. In the past, CNC machining was very costly. In time, it has come to be somewhat cost-effective as well as currently individuals do it as a pastime. I am presuming that is why you are right here.



Right here are a few various types of CNC devices that execute different machining procedures:

Milling machines

Wood routers

Plasma cutters

Foam cutters

Press brakes

Turrets

Cutoff saws



People have actually effectively used CNC to practically any kind of type of motion control. The only thing that will restrict you is your creative imagination.



If you have a new item that need to make a prototype to design inspection and check the architectural design.Please do not hesitate to speak to us. As a prototype manufacturing facility for 20 years. We can make any product.

multi axis cnc machining

New 5-Axis Vertical CNC Machining

/in , /by

New 5-Axis Vertical CNC Machining

First we need to recognize what is the 5-axis CNC machining? 5-axis CNC machining is making use of computer system numerical control (CNC) to relocate a device or part at the same time along five axes. The cutting device moves constantly along each axis to make sure that the idea is constantly vertical to the component. This process permits you to machine all kinds of complex parts.

Benefits of 5-axis CNC machining
Solitary Arrangement: 3-axis equipments require several arrangements, which can result in inaccurate positioning, greater prices, and other errors. With 5-axis CNC machining, you can device complicated shapes in a single setup, increasing efficiency, conserving time, reducing prices as well as avoiding operator mistake.

Shorter tools: 5-axis CNC machining enables you to use shorter devices due to the fact that you can decrease the head as well as place the tool correctly. This helps achieve greater reducing speeds without placing way too much pressure on the device. Shorter cutting devices additionally decrease tool vibration, which can create tooth cavities and also cores. You’ll see a better surface coating as a result of much less resonance on the 5-axis device.

Complex Parts: 5-axis CNC machining process allows you to equipment facility parts that would or else require spreading. If you have a low-volume production or model, you’ll be able to machine the part in a few weeks, instead of waiting months for casting.

Enhanced device life: You can maintain constant chip load and ideal cutting placement to enhance device cycle time and also life.

Boring: 5-axis CNC machining gives the ability to drill a collection of openings with various substance angles in time. This conserves a great deal of time– if you are making use of a 3-axis device, you will certainly require to utilize various settings for every face.

Collision avoidance: the capacity to turn the table or cutting tool to stop crash with the tool owner

If you have a brand-new item that require to make a prototype to create assessment and examine the structural design. Please do not hesitate to speak to us. As a prototype manufacturing facility for 20 years.We can make any item.

The Most Affordable Machining Method – CNC Machining

/in , /by

The Most Affordable Machining Method – CNC Machining

Whatever before this topic is preparation. CNC Machining is where the rubber meets the road. All the actions of CNC before machining are just planning for the machining stage of the job. An easy meaning of machining is getting rid of product. You get rid of material in various means to find up with the component or piece.



CNC Machining can be executed on various kinds of material. As an example, timber, steel, light weight aluminum, as well as stone. Machining typically has actually higher resistances connected with it. When machining, you are attempting to do something extra precise.



In machining, we use some type of tool. This device could be a mill, drill little bit, end mill, router bit or other device. There are infinite variants of tools. CNC Tooling generally sets you back a fair quantity of money. Once you invest in your tooling though, you can use it time and again till it wears out. If you have a large range of different tools, you will certainly have the ability to carry out a huge selection of machining kinds.



Here is a listing of usual tooling made use of in CNC Machines:

Pierce little bits

End mills

Plasma cutter

Dovetail cutter

Fly cutter



If you would like to consider various kinds of CNC tooling, most likely to among these sources online:

Enco

Travers

McMasters-Carr

Grainger



Flip through a few of these vendors’ magazines and you will certainly get an idea about the boundless styles of tooling.



CNC is utilized in the machining process. Generally, you can improve precision, quicker production, and also total efficiencies when utilizing CNC machining. This is why it has actually come to be so popular. In the past, CNC machining was really expensive. With time, it has actually become somewhat affordable and also now individuals do it as a pastime. I am thinking that is why you are right here.



Here are a few different types of CNC equipment that execute various machining procedures:

Milling machines

Timber routers

Plasma cutters

Foam cutters

Press brakes

Lathes

Cutoff saws



Individuals have effectively used CNC to practically any type of sort of movement control. The only thing that will certainly restrict you is your creative imagination.



The E-make group has more than three decades of combined experience in model machining, CNC manufacturing. If you require any help, please do not hesitate to contact us.

Specialist CNC Machining Service

/in , /by

Specialist CNC Machining Service

Every little thing before this subject is prep work. CNC Machining is where the rubber meets the roadway. All the actions of CNC before machining are just getting ready for the machining stage of the job. A simple definition of machining is getting rid of product. You remove material in various means ahead up with the component or piece.



CNC Machining can be executed on many kinds of material. For instance, timber, steel, aluminum, and rock. Machining generally has actually greater resistances related to it. When machining, you are attempting to do something much more specific.



In machining, we use some kind of tool. This device could be a grinder, drill bit, end mill, router little bit or other device. There are boundless variations of devices. CNC Tooling usually costs a reasonable quantity of cash. When you invest in your tooling though, you can utilize it over and over up until it wears. If you have a large selection of various tools, you will certainly be able to execute a huge selection of machining types.



Here is a checklist of usual tooling used in CNC Machines:

Pierce bits

End mills

Plasma cutter

Dovetail cutter

Fly cutter



If you wish to check out various sorts of CNC tooling, go to one of these sources on the net:

Enco

Travers

McMasters-Carr

Grainger



Skim a few of these vendors’ magazines and also you will get a suggestion about the infinite designs of tooling.



CNC is used in the machining procedure. Generally, you can get better accuracy, quicker production, as well as overall efficiencies when using CNC machining. This is why it has ended up being so preferred. In the past, CNC machining was very costly. Gradually, it has actually ended up being somewhat cost-effective and now individuals do it as a pastime. I am presuming that is why you are here.



Below are a few different kinds of CNC makers that execute different machining procedures:

Milling machines

Wood routers

Plasma cutters

Foam cutters

Press brakes

Lathes

Cutoff saws



People have actually efficiently used CNC to basically any type of movement control. The only thing that will limit you is your creativity.



The E-make group has more than three decades of combined experience in model machining, CNC manufacturing.If you require any help, please do not hesitate to contact us.

CNC machining everything you want!

/in , /by

CNC machining everything you want!

Everything before this topic is preparation. CNC Machining is where the rubber fulfills the roadway. All the steps of CNC before machining are simply preparing for the machining phase of the task. A straightforward interpretation of machining is removing material. You remove product in numerous ways to come up with the component or item.



CNC Machining can be executed on various sorts of material. As an example, wood, steel, light weight aluminum, and also stone. Machining generally has higher tolerances connected with it. When machining, you are attempting to do something a lot more precise.



In machining, we utilize some type of device. This device could be a grinder, drill little bit, end mill, router little bit or other device. There are boundless variations of tools. CNC Tooling normally costs a fair quantity of money. When you invest in your tooling though, you can use it repeatedly until it breaks. If you have a large selection of different devices, you will certainly be able to perform a big range of machining kinds.



Here is a checklist of usual tooling made use of in CNC Machines:

Drill bits

End mills

Plasma cutter

Dovetail cutter

Fly cutter



If you would love to consider different kinds of CNC tooling, go to one of these resources online:

Enco

Travers

McMasters-Carr

Grainger



Skim a few of these suppliers’ directories and also you will certainly get an idea concerning the boundless designs of tooling.



CNC is made use of in the machining procedure. Generally, you can get better precision, quicker manufacturing, and also general performances when using CNC machining. This is why it has become so popular. In the past, CNC machining was extremely pricey. Over time, it has ended up being somewhat cost-effective and also currently people do it as a leisure activity. I am presuming that is why you are right here.



Below are a couple of various kinds of CNC makers that execute different machining processes:

Milling equipment

Timber routers

Plasma cutters

Foam cutters

Press brakes

Turrets

Cutoff saws



People have efficiently used CNC to practically any kind of sort of movement control. The only thing that will restrict you is your creative imagination.

The E-make group has more than three decades of combined experience in model machining, CNC manufacturing.If you require any help, please do not hesitate to contact us.



CNC Milling Aluminum Parts With Powder Coating

Prototype by CNC machining

/in , /by

Prototype by CNC machining

In the style procedure of R&D items, after they have finished the layout illustrations, among things they wish to do most is to understand what the items they develop are like in truth, and also whether the appearance of the items follows their own layout ideas., Is the structure layout of the product practical, and so on? Prototype manufacturing is generated in action to this demand.

Classification of models:
Models can be separated right into guidebook and also numerical control prototypes according to the production methods:
Manual prototype: The main work is done by hand.
CNC machining prototype: The main workload is finished by CNC device tools, as well as relying on the equipment made use of, it can be split right into laser fast prototyping (RP, Quick Prototyping) models as well as machining center (CNC) prototypes
A: RP model: mostly created by laser rapid prototyping innovation.

B: CNC  prototype: primarily generated by machining center.

RP models have their own advantages compared to CNC models: the advantages of RP prototypes are mostly in its rapidity, however it is generally created by piling technology, so RP models are generally reasonably rough, and also there are specific demands for the wall thickness of the product, for instance, If the wall density is too thin, it can not be produced.

The benefit of CNC machining prototype is that it can properly reflect the details shared in the illustrations, as well as the surface top quality of CNC model is high, specifically after the surface spraying and also silk printing are completed, it is much more glamorous than the item generated after the mold and mildew is opened. Consequently, CNC prototype machining has significantly end up being the mainstream of model production.

According to the products made use of in cnc machining, models can be divided right into plastic and metal models:
( 1) Plastic models: The raw materials are plastic, generally for prototypes of plastic products, such as tvs, screens, telephones, and so on.

( 2) Metal models: The raw materials are aluminum-magnesium alloys and also other metal products, mainly for high-end items, such as laptop, high-end solitary gamer, MP3 players, CD players, and so on.

The need of model production
( 1 )Layout inspection

The model is not just noticeable, but also touchable. It can straight show the developer’s imagination in the form of physical objects, preventing the downside of “attracting to look good however not to make it look good”. Therefore, prototype production is essential in the process of new product growth as well as product shape scrutiny.

( 2 )Examine the structural design
Due to the fact that the prototype is assemble, it can without effort mirror the reasonableness of the framework as well as the ease of installment. It is convenient to discover and solve troubles early.

( 3 )Avoid the threat of directly make mold and mildews
Due to the fact that the cost of mold manufacturing is generally really high, fairly huge mold and mildews are worth hundreds of thousands and even millions. If unreasonable framework or other problems are discovered in the process of opening the mold and mildew, the loss can be thought of. Prototype production can prevent this loss and reduce the danger of mold opening.

The surface area of prototype:1, electroplate.2, anodized.3, paint.4, gloss.5, lase.etc.

If you have a brand-new item that need to make a model to create assessment as well as examine the structural design.Please do not hesitate to get in touch with us.As a model manufacturing facility for 20 years.We can make any kind of item.

CNC machining tecnology

/in , /by

CNC machining tecnology

Every little thing before this topic is preparation. CNC Machining is where the rubber fulfills the roadway. All the actions of CNC before machining are simply planning for the machining stage of the project. A simple meaning of machining is getting rid of material. You remove material in numerous means ahead up with the part or item.

CNC Machining can be executed on countless kinds of product. For example, wood, steel, light weight aluminum, and also plastic. Machining typically has greater resistances related to it. When machining, you are attempting to do something extra accurate.

In machining, we use some type of device. This device could be a grinder, drill little bit, end mill, router bit or various other tool. There are infinite variants of devices. CNC Tooling typically sets you back a fair amount of money. As soon as you purchase your tooling though, you can utilize it over and over till it wears. If you have a big selection of different tools, you will certainly have the ability to execute a big range of machining types.

Right here is a listing of common tooling used in CNC Machines:

Drill little bits

End mills

Plasma cutter

Dovetail cutter

Fly cutter

If you want to consider different sorts of CNC tooling, most likely to among these resources on the net:

Enco

Travers

McMasters-Carr

Grainger

Browse a few of these vendors’ directories as well as you will certainly obtain a concept concerning the unlimited styles of tooling.

CNC is made use of in the machining procedure. Typically, you can get better precision, quicker production, as well as total performances when making use of CNC machining. This is why it has come to be so prominent. In the past, CNC machining was extremely costly. Over time, it has become rather affordable and currently people do it as a pastime. I am thinking that is why you are right here.

Below are a few various sorts of CNC machines that perform various machining procedures:

Milling equipment

Wood routers

Plasma cutters

Foam cutters

Press brakes

Lathes

Cutoff saws

The E-make group has more than thirty years of mixed experience in prototype machining, CNC machining.And has a top-level technological group of 25 peoples.The processing high quality of the rapid production is stable, the handling accuracy is high, and also the look is exquisite.If you need any type of aid, please do not hesitate to contact us.

cnc machining bg pic

5-axis CNC machining process

/in , /by

5-axis CNC machining process

Initially we need to recognize what is the 5-axis CNC machining? 5-axis CNC machining is the use of computer mathematical control (CNC) to relocate a device or part concurrently along five axes. The reducing device moves continuously along each axis so that the idea is constantly perpendicular to the part. This process enables you to device all type of complex parts.



Benefits of 5-axis CNC machining

Solitary Setup: 3-axis devices need multiple setups, which can result in incorrect alignment, greater expenses, and other errors. With 5-axis CNC machining, you can equipment complex forms in a single configuration, increasing performance, conserving time, reducing prices and also avoiding operator error.

Much shorter tools: 5-axis CNC machining enables you to use much shorter devices due to the fact that you can lower the head as well as place the tool effectively. This helps attain higher reducing speeds without putting too much stress on the device. Much shorter cutting devices additionally minimize device resonance, which can trigger tooth cavities and cores. You’ll see a better surface coating due to much less vibration on the 5-axis machine.

Complicated Parts: 5-axis CNC machining process allows you to machine complicated components that would certainly otherwise need casting. If you have a low-volume manufacturing or prototype, you’ll be able to machine the component in a few weeks, as opposed to waiting months for spreading.

Increased device life: You can keep continuous chip load as well as optimal cutting setting to enhance tool cycle time and life.

Exploration: 5-axis CNC machining provides the capacity to drill a series of holes with numerous compound angles in time. This saves a great deal of time– if you are making use of a 3-axis machine, you will certainly require to utilize various settings for each and every face.

Accident evasion: the ability to turn the table or cutting device to avoid accident with the device holder

The E-make group has greater than three decades of combined experience in model machining, CNC machining.And has a top-level technological group of 25 peoples.The handling high quality of the fast production is stable, the handling precision is high, as well as the appearance is exquisite.If you require any type of assistance, please feel free to contact us.
