PEEK CNC Machining — Precision Manufacturing for High-Performance Applications

/in /by



In the demanding world of modern manufacturing, finding a material that balances the strength of metal with the lightweight versatility of plastic is a constant challenge. This is where Polyetheretherketone, commonly known as PEEK, steps in. PEEK is a semi-crystalline, high-performance engineering thermoplastic that has revolutionized industries requiring extreme durability, thermal stability, and chemical resistance. However, transforming this remarkable material into precise, functional components requires specialized expertise.

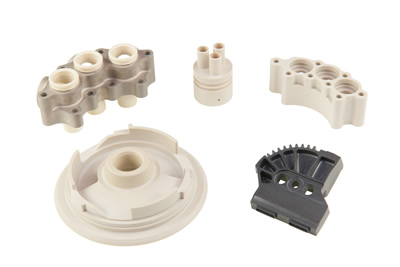

PEEK CNC machining is the optimal process for creating intricate parts that must perform flawlessly in harsh environments. Unlike standard plastics, PEEK’s unique properties demand specific machining strategies, specialized tooling, and rigorous thermal management to achieve tight tolerances and superior surface finishes. For engineers and procurement professionals, understanding the nuances of PEEK machining is essential for ensuring product reliability and cost-effectiveness.



This comprehensive guide explores the critical aspects of PEEK CNC machining, from its core properties to optimal machining parameters, and highlights why partnering with an experienced manufacturer like E-make Precision is crucial for your next project.



What Is PEEK?

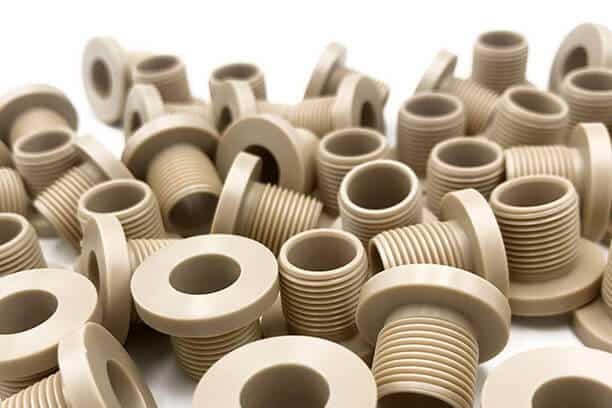

PEEK (polyetheretherketone) belongs to the polyaryletherketone (PAEK) family of high-performance polymers. Its molecular structure, characterized by alternating ether and ketone linkages, imparts exceptional mechanical strength, broad chemical resistance, and an impressive continuous use temperature of 260°C.



Furthermore, PEEK is renowned for its excellent dimensional stability and low moisture absorption, making it highly reliable in fluctuating environmental conditions. Its inherent flame retardancy and low smoke emission further enhance its suitability for critical applications. Because of these robust characteristics, PEEK is frequently selected as a lightweight alternative to metals like aluminum and steel, particularly in aerospace, medical, and semiconductor industries.



PEEK Material Grades and Options

To meet diverse application requirements, PEEK is available in several distinct grades, each offering specific advantages. Understanding these variations is vital for selecting the right material and determining the appropriate machining approach.



PEEK Grade Key Characteristics Machinability Typical Applications
Unfilled (Natural) PEEK Highest elongation and toughness, FDA compliant, excellent chemical resistance. Easiest to machine; standard carbide tools are sufficient. Medical implants, food processing components, seals, general engineering parts.
30% Glass-Filled PEEK Enhanced stiffness, high dimensional stability, reduced thermal expansion. Moderate; highly abrasive, requiring PCD (polycrystalline diamond) tooling for production runs. Structural components, insulators, wear parts in harsh chemical environments.
30% Carbon-Filled PEEK Maximum stiffness and strength, highest wear resistance, excellent load-bearing capacity. Most challenging; extremely abrasive, making PCD tools and conservative parameters non-negotiable. Aerospace brackets, thrust washers, high-performance automotive components.
Medical Grade PEEK Meets ISO 10993 biocompatibility standards, radiolucent (transparent to X-rays). Similar to unfilled PEEK, but demands strict contamination control during machining. Spinal fusion cages, cranial implants, specialized surgical instruments.

Benefits of PEEK CNC Machining

When producing high-performance parts, CNC machining offers distinct advantages over other manufacturing methods like injection molding, particularly for PEEK.



  • Tight Tolerances:PEEK CNC machining can achieve precision tolerances as tight as ±0.01 mm, which is critical for complex aerospace and medical components. This level of accuracy is difficult to consistently achieve with injection molding.
  • Low-Volume Production Efficiency:For prototype manufacturing or small batch runs (1 to 500 parts), CNC machining is highly cost-effective, eliminating the need for expensive mold tooling.
  • Complex Geometries:Multi-axis CNC machining centers can produce intricate designs, internal features, and thick sections without the risk of voids or molded-in stress common in injection molding.
  • Material Integrity:Machining from solid PEEK stock ensures isotropic mechanical properties, meaning the material’s strength is consistent in all directions, unlike molded parts which may have directional weaknesses.



PEEK CNC Machining vs. Injection Molding

Choosing between CNC machining and injection molding for PEEK parts depends largely on production volume and part complexity.



Feature PEEK CNC Machining PEEK Injection Molding
Initial Cost Low (no tooling required) High (expensive mold fabrication)
Per-Part Cost (Low Volume) Moderate to High Very High (due to tooling amortization)
Per-Part Cost (High Volume) Moderate Low
Lead Time Fast (1–3 days for prototypes) Slow (weeks to months for mold creation)
Tolerance Capabilities Exceptional (up to ±0.01 mm) Moderate (typically ±0.1 mm)
Design Flexibility High (easy to modify designs) Low (changes require mold modifications)

Why E-make Precision for PEEK CNC Machining

Machining PEEK requires more than just standard equipment; it demands deep material knowledge and rigorous process control. E-make Precision stands out as a premier partner for your custom CNC machining needs.

With over 30 years of combined experience in prototype manufacturing, E-make Precision has mastered the complexities of machining advanced thermoplastics like PEEK. Our state-of-the-art facility in Shenzhen, China, is equipped with advanced 3- and 5-axis CNC milling and turning centers, enabling us to handle the most intricate geometries.



Here is why industry leaders trust E-make Precision:



  • Uncompromising Precision:We consistently deliver tight tolerance machining, achieving standards as rigorous as ±0.01 mm (ISO 2768-m/-f), verified by comprehensive CMM inspection.
  • Rapid Turnaround:We understand that speed is critical. We provide quotes in under 8 hours and deliver CNC machined parts in just 1–3 days.
  • Scalable Production:Whether you need a single functional prototype or a low volume manufacturing run of 1,000 to 10,000 units, our operations scale to meet your demands.
  • Global Reach:We offer worldwide FedEx/DHL/UPS shipping, ensuring your parts arrive in just 2 working days, no matter where you are located.
  • Expertise Across Industries:From aerospace cnc machining service to medical device prototype manufacturing, we have the specialized knowledge to meet strict industry standards.



How to Get Started

Partnering with E-make Precision for your PEEK machining project is a streamlined, hassle-free process.



  • Prepare Your CAD Files:Ensure your 3D models are finalized and clearly indicate any critical tolerances, surface finish requirements, and the specific grade of PEEK needed.
  • Request a Quote:Email your files and project details directly to bennett@e-make.co. Our engineering team will review your requirements and provide a comprehensive quote in less than 8 hours.
  • Design Review and Approval:We will conduct a thorough DFM (Design for Manufacturability) review to optimize your part for CNC machining, ensuring the best possible quality and cost-efficiency.
  • Production and Delivery:Once approved, we move swiftly into production. Your precision PEEK parts will be machined, rigorously inspected, and shipped worldwide within days.



In conclusion, PEEK CNC machining is a sophisticated process that unlocks the potential of one of the world’s most capable engineering plastics. By understanding its properties and selecting the right manufacturing partner, you can ensure your critical components perform flawlessly.



Ready to elevate your next project with precision PEEK parts? Visit https://e-make.co or contact us at bennett@e-make.co to get your rapid quote today.

Car rear light prototype manufacturing

/in , , , , , , /by

Car rear light prototype manufacturing

Name:car rear light prototype



Color:can custom any color according customer requirements.



Material:PC,TransparentPMMA,ABS,POM



Size:The dimensions of 3D drawings provided by customers shall prevail

Time:8days



Types:prototype of auto parts



Characteristics of prototype:



1,Clear lines,relying on imported equipment and unique process design, precision machining makes the line stripe path and outline more clear and smooth.



2,High efficient,strong strength.The company focuses on prototype processing for 12 years,we have accumulated a lot of relevant experience and talents,can efficiently meet customer requirements ,Meet customer requirements under the premise of faster order completion.



3,Higher precision, imported equipment, precision tolerance ±0.05mm.



4，Fast efficiency and short processing time.



Excellent talents, a wider range of processing size.

Advantage:

 1,High quality and reasonable price

 2,Machining, drawing or sample.

3,Can according 3D drawings and 2d drawings。

4,3D drawing file format :IGS/X-T/PRT/STP /STL is all available.

5，Custom samples and technical specifications are welcome。

Automobile rear light hand plate model can be carried out:

1,CNC machining

2,polishing

3,painting

4, electroplating

5，assemble

E-make prototype advantages and strength characteristics:

1,Quote in 1 hour, delivery in 2 working days.

2,Our company has SLS and DLP from Germany, SLA rapid prototyping equipment from America, Stratasys 3D printer from America, metal powder 3D printer from America, and ProJet860 full-color 3D printing equipment from America. Taiwan imported CNC machining center 10 sets, vacuum casting, low pressure perfusion.

3,Prototype appearance can be spray paint, electroplating, wire drawing, screen printing.

4,We can make 3D printing prototype, plastic prototype, hardware prototypr, function prototype, appearance prototype, transparent prototype, high temperature resistant prototype, coffee machine prototype, kitchen appliance hand board, auto parts hand board and so on.

5,Packing: inner packaging: pearl cotton, transparent bag. Outer package: carton.



If you need do auto parts prototype,please feel free to contact us .



https://e-make.co/

E-mail:amy@e-make.co

CNC wood parts

/in /by

CNC wood parts

1,CNC machining of commonly used wood

maple, walnut, oak, beech, etc

2,Processing

1,Purchase wood of appropriate size according to the size of parts

2, programming

3，Put the wood on the CNC machine, position it, input the program and start the processing
4. Hand-handling dander, varnishing etc. (Because the wood material has a low density, it is easy to break the parts during processing, and it can be repaired by hand)

The importance of prototype

/in /by

The prototype, or product model, may also be called a product sample.Why do people need to make a prototype?Making prototype is a key link in product design process, which provides reliable material basis for guaranteeing the feasibility of product design and product preparation for trial production.The main reason that follows to introduce to make prototype.
(1）Inspection design：
The prototype is not only visible, but also touchable. It can directly reflect the designer’s creativity in the form of real objects, avoiding the disadvantage of “good painting but bad true thing”.
(2)Inspection structure design:
Because the prototype can assemble, it can directly reflect the reasonable structure, as well as the difficulty of installation.Facilitate early detection of problems, problems to solve.
(3)Avoid the risk of making molds directly:
Because the cost of mold manufacturing is generally very high, if in the process of mold opening found unreasonable structure or other problems, the loss can be imagined.
(4)Bringing the product to market much earlier:
Because of the advanced prototype production, you can use the prototype before the development of the mold for product publicity, and even early sales, production preparation, as early as possible to occupy the market.
The E-make team has more than 30 years of combined experience in prototype machining, CNC manufacturing, vacuum casting service.and has a high-level technological group of 25 peoples.The processing quality of the rapid manufacturing is stable, the processing precision is high, and the appearance is exquisite. E-make company has been providing high quality rapid prototype manufacturing services for major enterprises.

Vacuum casting service

/in /by

What is vacuum casting?

The vacuum casting is use of the original sample to make a silicone mold, and is poured under vacuum to make the same piece as the original sample. The vacuum casting speed is fast and the cost is low, which greatly reduces the development cost, cycle and risk of the product.
1, select materials
Currently making materials for silicone molds:1,ordinary silicone: color translucent, milky white, light yellow, gray and so on. Hardness is usually between 40-70. More used are mobile phone buttons, miscellaneous items and so on.

2, meteorological glue, color: transparent. Commonly used between 40-60, due to the transparency of this material, strong tensile strength, high cost. generally used in high-end products that require high elasticity.

2,Product materials: POM, ABS, PC.
1: PC, good heat dissipation performance, uniform heat dispersion; high impact strength, good dimensional stability, colorless and transparent, good coloring, electrical insulation, corrosion resistance, wear resistance, but poor self-lubrication, It has a tendency to stress cracking, is easily hydrolyzed at high temperature, and has poor compatibility with other resins. High strength, high temperature resistance, long-term use can withstand 130 degrees Celsius temperature environment, good transparency, non-toxic. Suitable for making small instrument parts, insulating transparent parts and impact resistant parts.

2: POM, light yellow or white, thin-walled part is translucent, POM strength, high stiffness, good elasticity, good wear and wear resistance, excellent mechanical properties, high mechanical strength and rigidity; highest fatigue strength; environmental resistance Good resistance to organic solvents; strong resistance to repeated impact; wide temperature range (-40 ° C ~ 120 ° C); good electrical properties; good recovery; self-lubricating, good wear resistance.

3: ABS, ABS has better comprehensive performance, high impact strength, good chemical stability and good electrical properties; high impact, high heat resistance, flame retardant, enhanced, transparent, etc.; fluidity is better than PMMA, PC, etc. Good flexibility; suitable for making general mechanical parts, wear-resistant parts, transmission parts and telecommunications parts. Most of the automotive interior panels are made of ABS.

3, silicone mold production: making silicone mold, after drying, the silicone mold is cut open, and the prototype is taken out.
4. injection: Inject liquid plastic material into the silicone mold and wait for drying.



CNC Machining Prototype

/in /by

CNC Machining Prototype

CNC rapid prototyping,a processing with fast producing speed,using raw material to manufacturing prototype by CNC machine.The cnc machined parts with nice surface finish,especially after painting,silk-printing and PVD coating, the surface’s effect is very closed to the moulding machining parts.

CNC manufacturing can use ABS,POM,PC,PA,metal and other material to machining prototype for satisfying different customer’s request.However,the prototype will have very great strength and toughness if the machined material is with high quality and high density.

The Cost Of CNC Precision Machining

1.The material cost is lower if using pure ABS,PP and the other pure material.

2.CNC machining process need to program the procedure and split the parts sometimes,but one cnc machining equipment needs to be operated by 3 or 4 workers,that’s why cnc machining takes more labor cost.Therefore,the cost of cnc machining is up to the complexity and the expending of material.More complex parts needs more workload for splitting and programming,which means will takes more working time and machining cost.

The Advantage Of CNC Machining

1.Using engineering plastics has cheaper price and more selection of materials.
2.The cnc machining equipment with more stable performance,is easier to operate.
3.CNC machining processing is more suitable for producing the parts with large size and simple structure.
The Material That CNC Machining usually use
ABS 、PC、POM 、PP 、PMMA、Nylon、bakelite、aluminum alloy、Zinc alloy、mild steel、copper、stain steel，etc.,PTFE,PBT,PPS,PEET also can be machining material.
